Technical Data

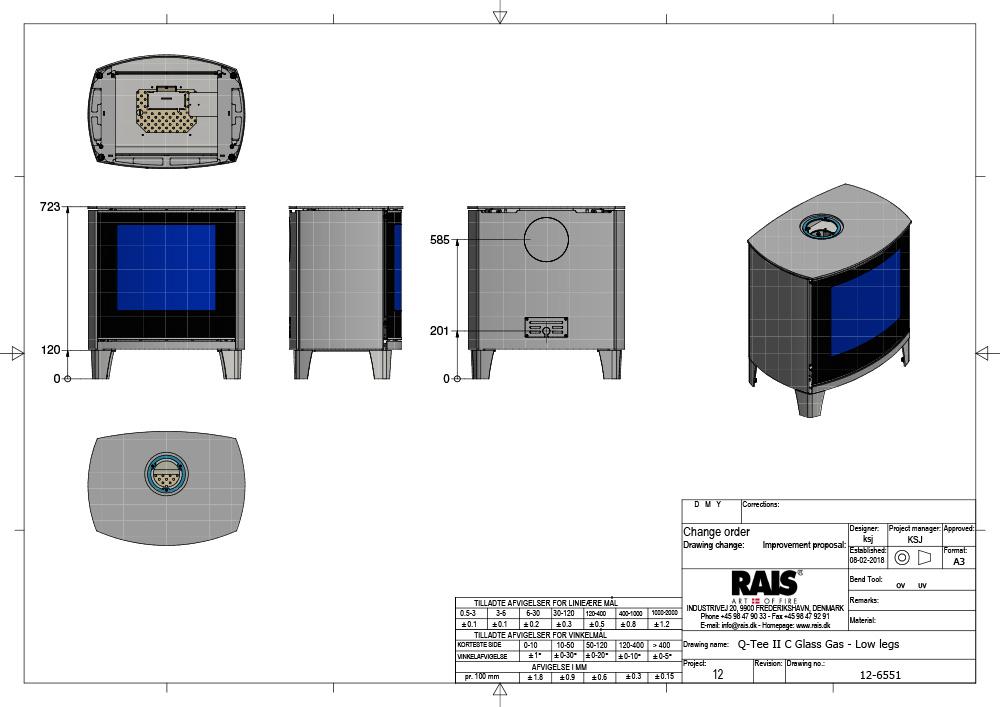

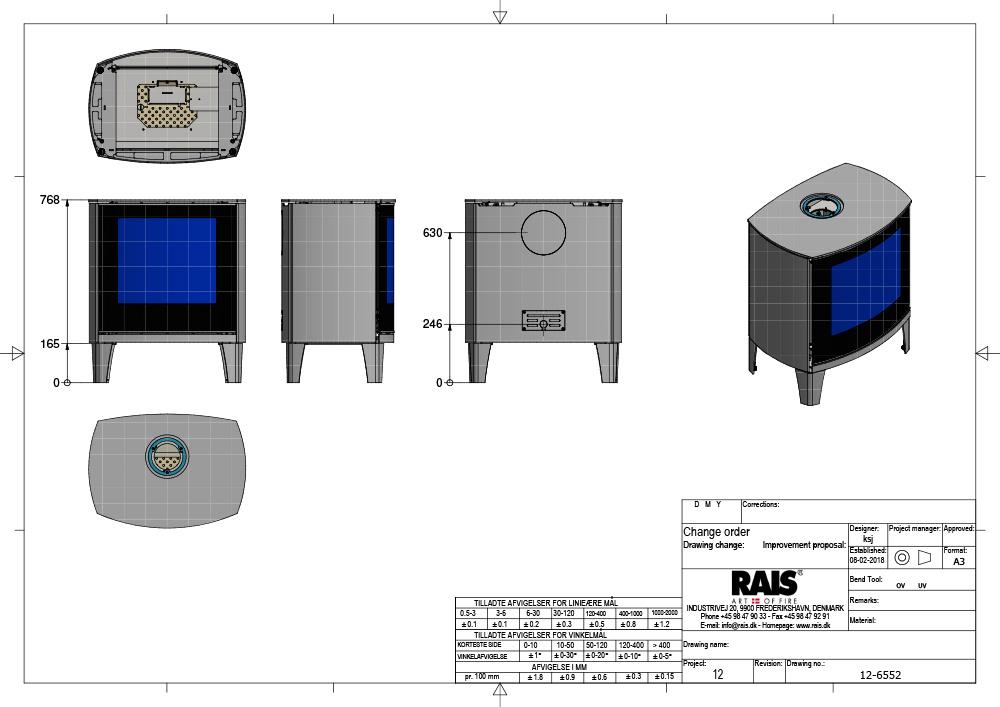

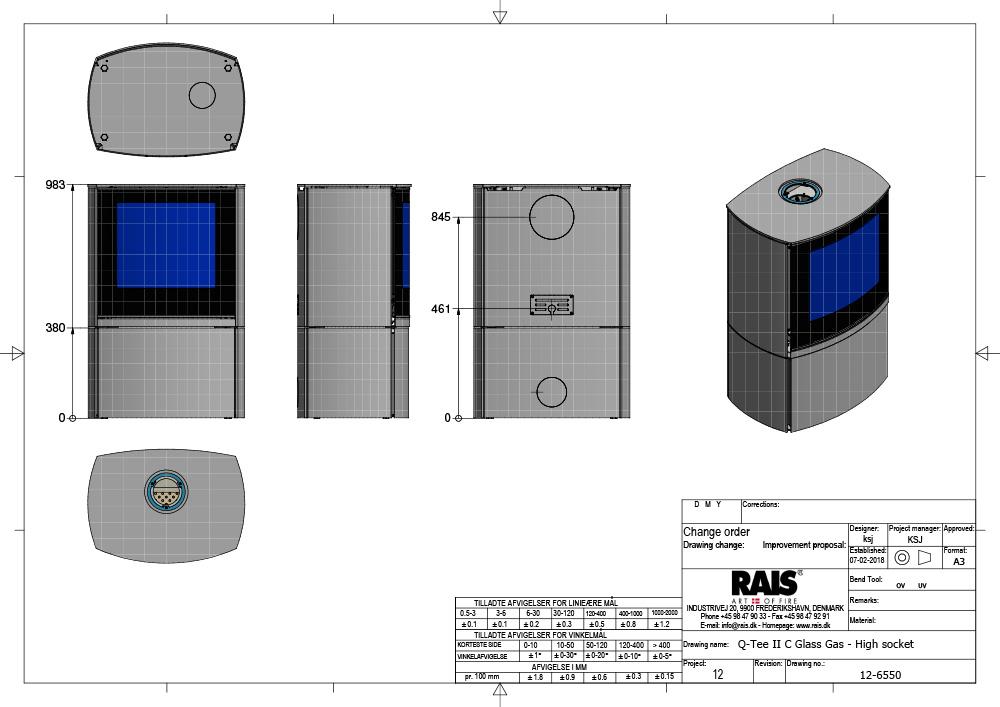

  • Dimensions (W-D-H)
  • External dimensions (W-D-H) in mm:656 - 479 - 603/883/983 mm
  • Combustion chamber inner dimensions (W-D-H) in mm:446 - 277 - 256 mm
  • Outer frame dimensions (W-D-H) in mm:100/150 mm
  • Distance from centre to the back edge of the top plate in mm:159 mm
  • Distance from floor to the centre of the flue outlet, top:603/883/983 mm
  • Distance from floor to the centre of the flue outlet, back:475/755/855


Output

  • Nominal heat input (kW): Natural Gas - G20 I2H/I2E:8.2
  • Min. input (kW): Natural Gas - G20 I2H/I2E:1.7
  • Nominal heat input (kW): Propane Gas - G30/G31 I3B/P(30):7.2
  • Min. input (kW): Propane Gas - G30/G31 I3B/P(30):1.8-8
  • Efficiency in %:78


Distance to flammable material

  • To back wall in mm:50 mm
  • To the ceiling in mm:450 mm
  • To the side in mm:250 mm


Specifications

  • Steel door with glass:STANDARD
  • Glass door:ACCESSORY
