Rais Q-Tee 2

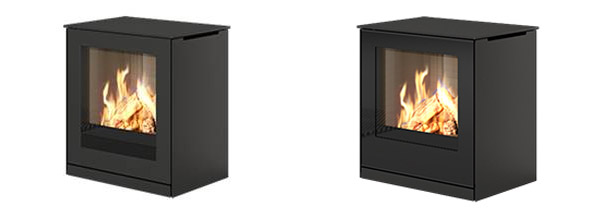

Available with a Steel Door or a Glass Door (Glass door shown).

‍

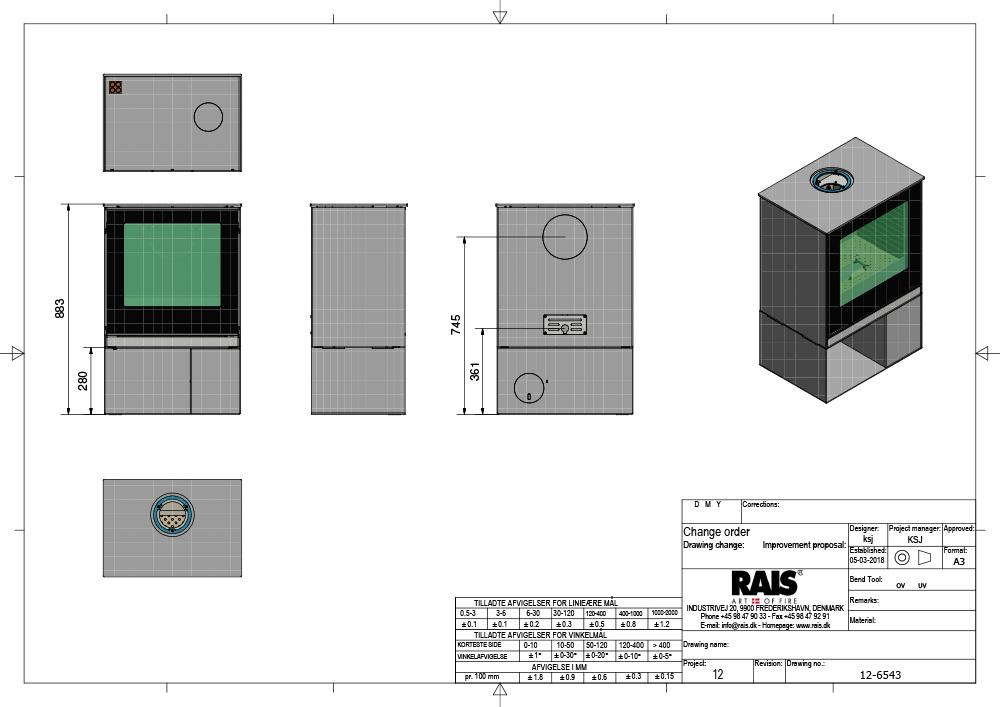

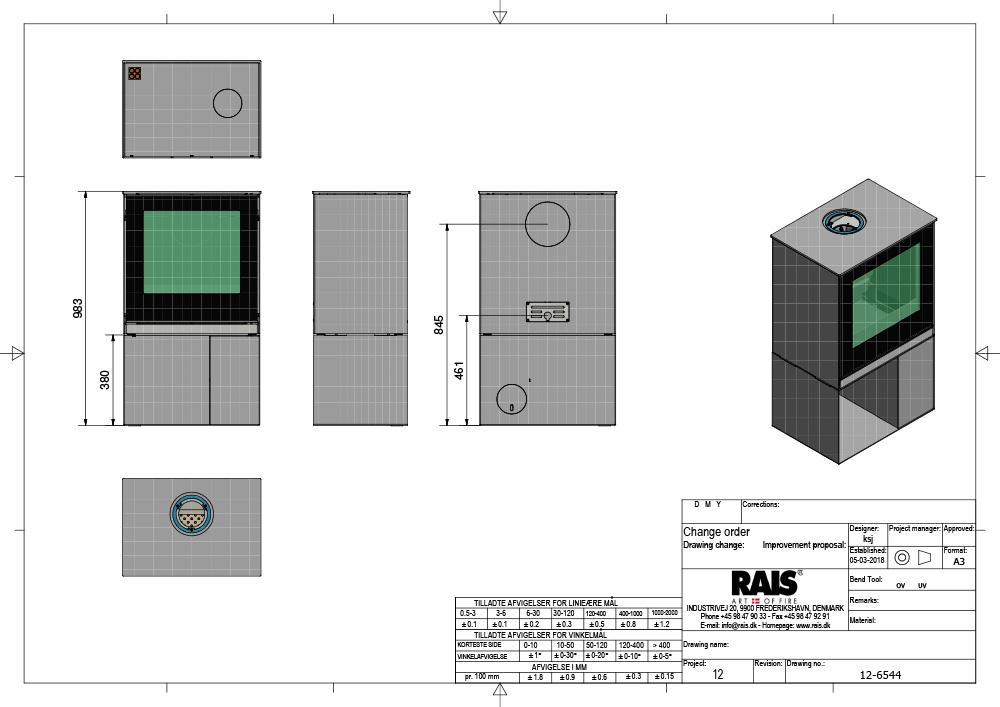

Standard Log Store 280mm high, High Log Store 380mm high.

‍

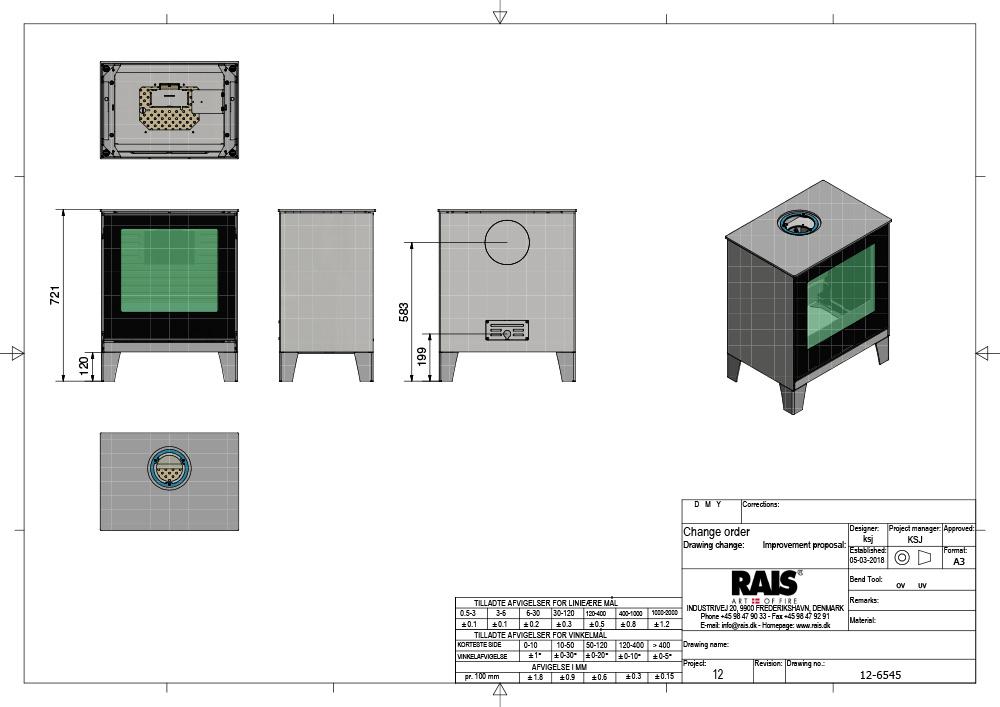

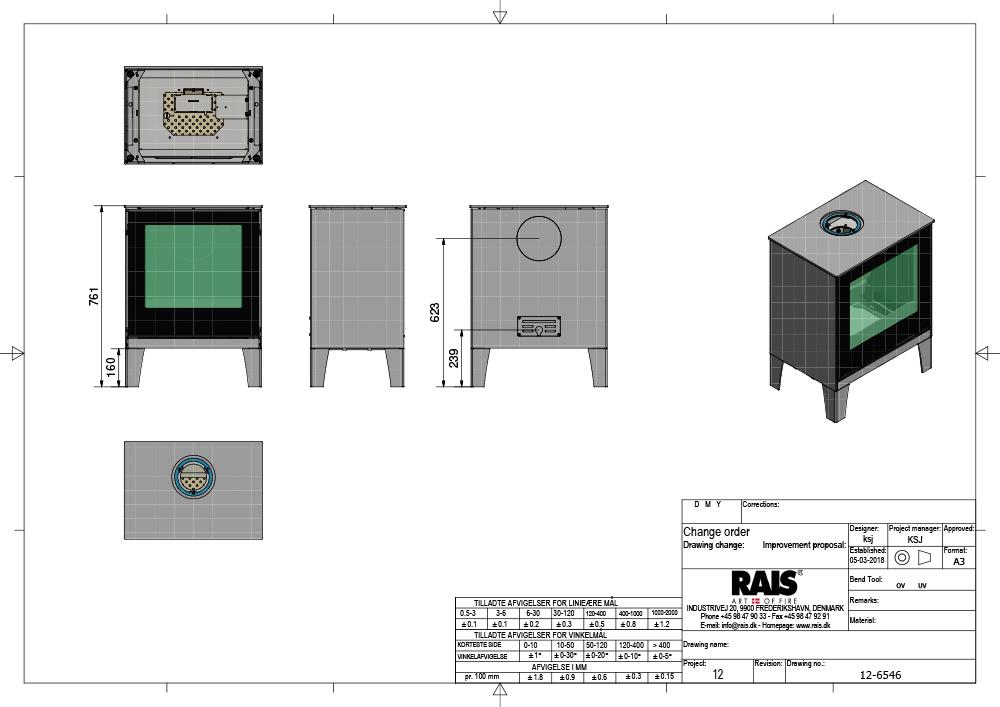

Low Legs 125mm high, High Legs 165mm high.

‍

‍Technical Data

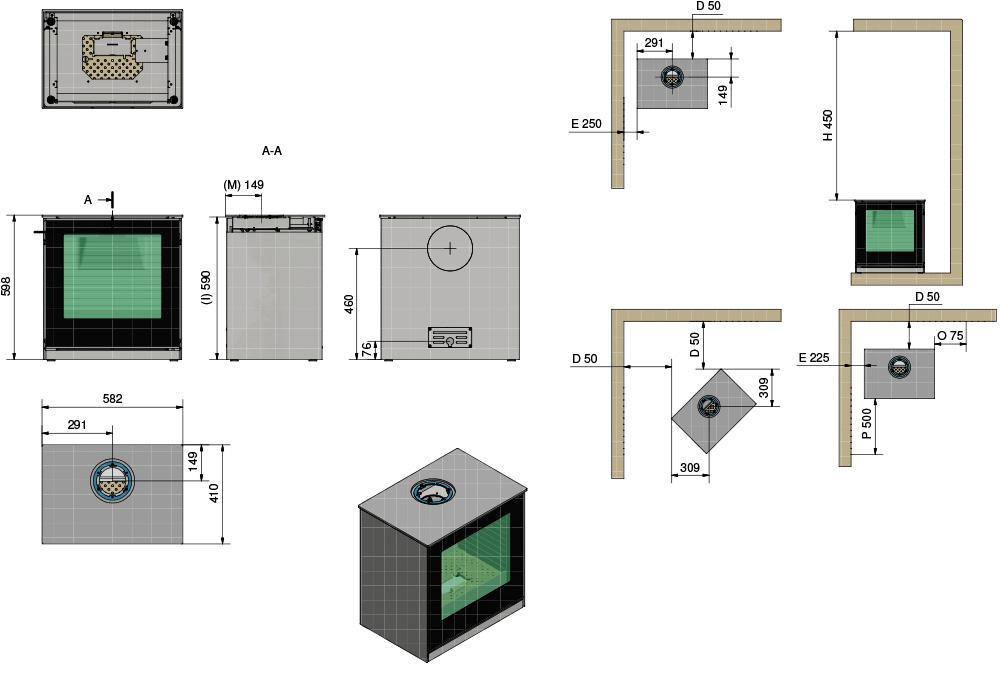

• Dimensions (W-D-H)
• External dimensions (W-D-H) in mm:582 - 410 - 598/975 mm
• Combustion chamber inner dimensions (W-D-H) in mm:446 - 277 - 265 mm
• Outer frame dimensions (W-D-H) in mm:100/150 mm
• Distance from centre to the back edge of the top plate in mm:131 mm
• Distance from floor to the centre of the AirSystem connection:105/490 mm
• Distance from floor to the centre of the flue outlet, top:590/975 mm
• Distance from floor to the centre of the flue outlet, back:470/755 mm

Output

• Nominal heat input (kW): Natural Gas - G20 I2H/I2E:8.2
• Min. input (kW): Natural Gas - G20 I2H/I2E:1.7
• Nominal heat input (kW): Propane Gas - G30/G31 I3B/P(30):7.2
• Min. input (kW): Propane Gas - G30/G31 I3B/P(30):1.8-8
• Efficiency in %:78

Distance to flammable material

• To back wall in mm: 50 mm
• To the ceiling in mm: 450 mm
• To the side in mm: 250 mm

‍
